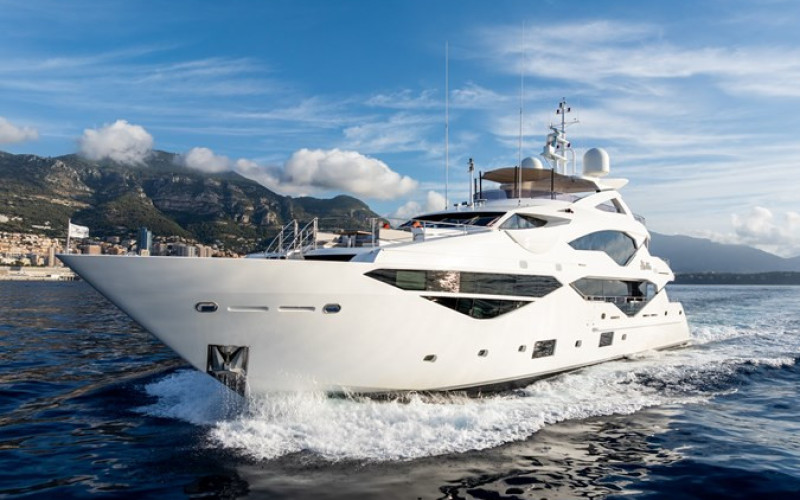

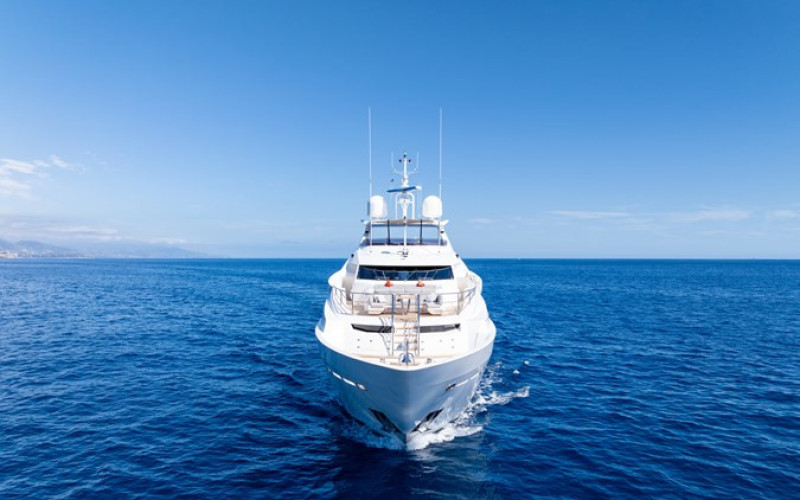

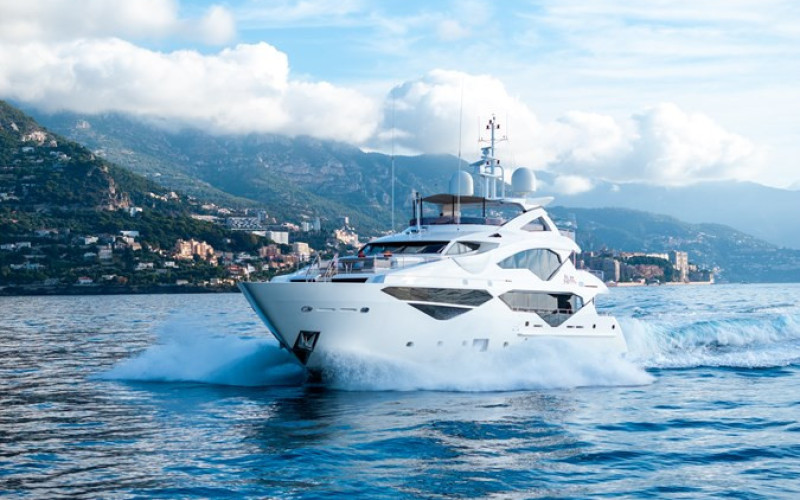

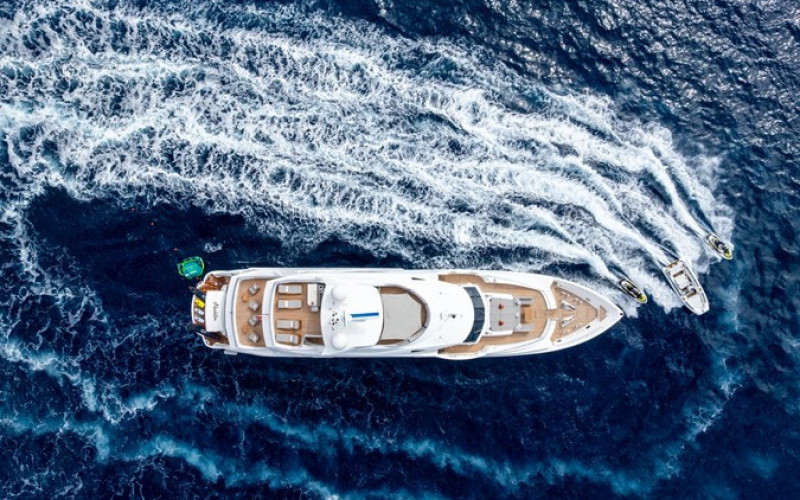

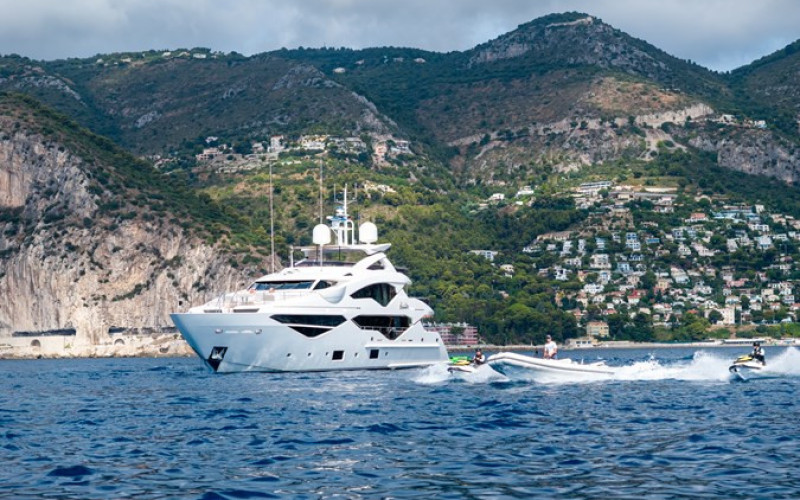

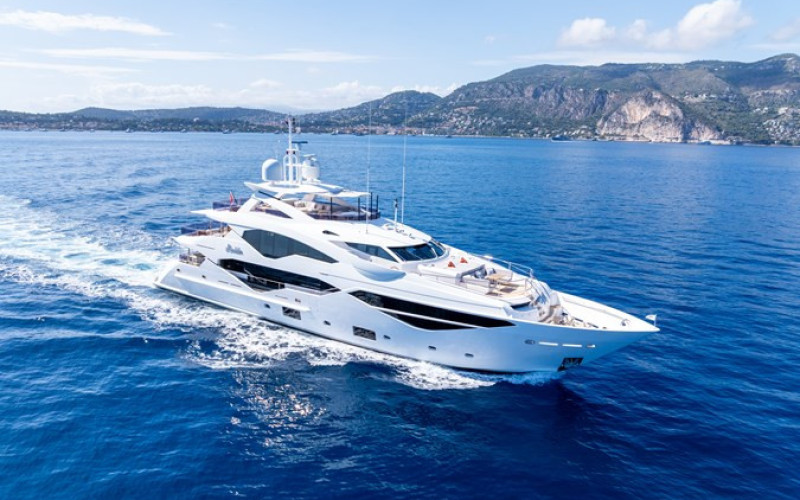

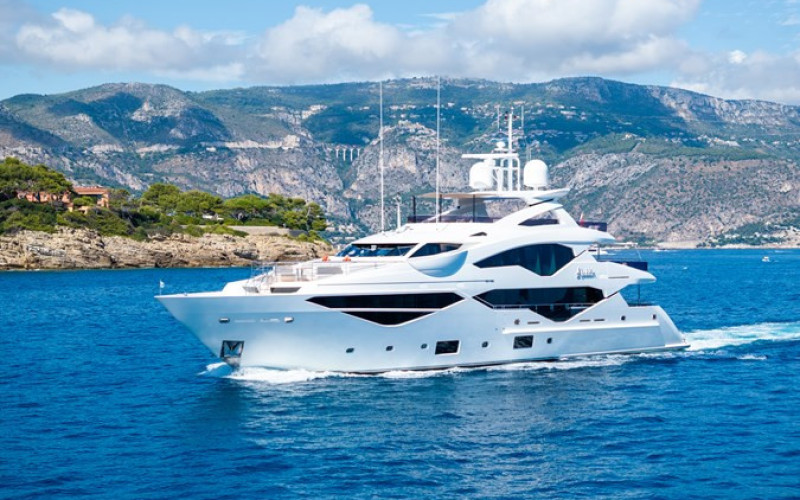

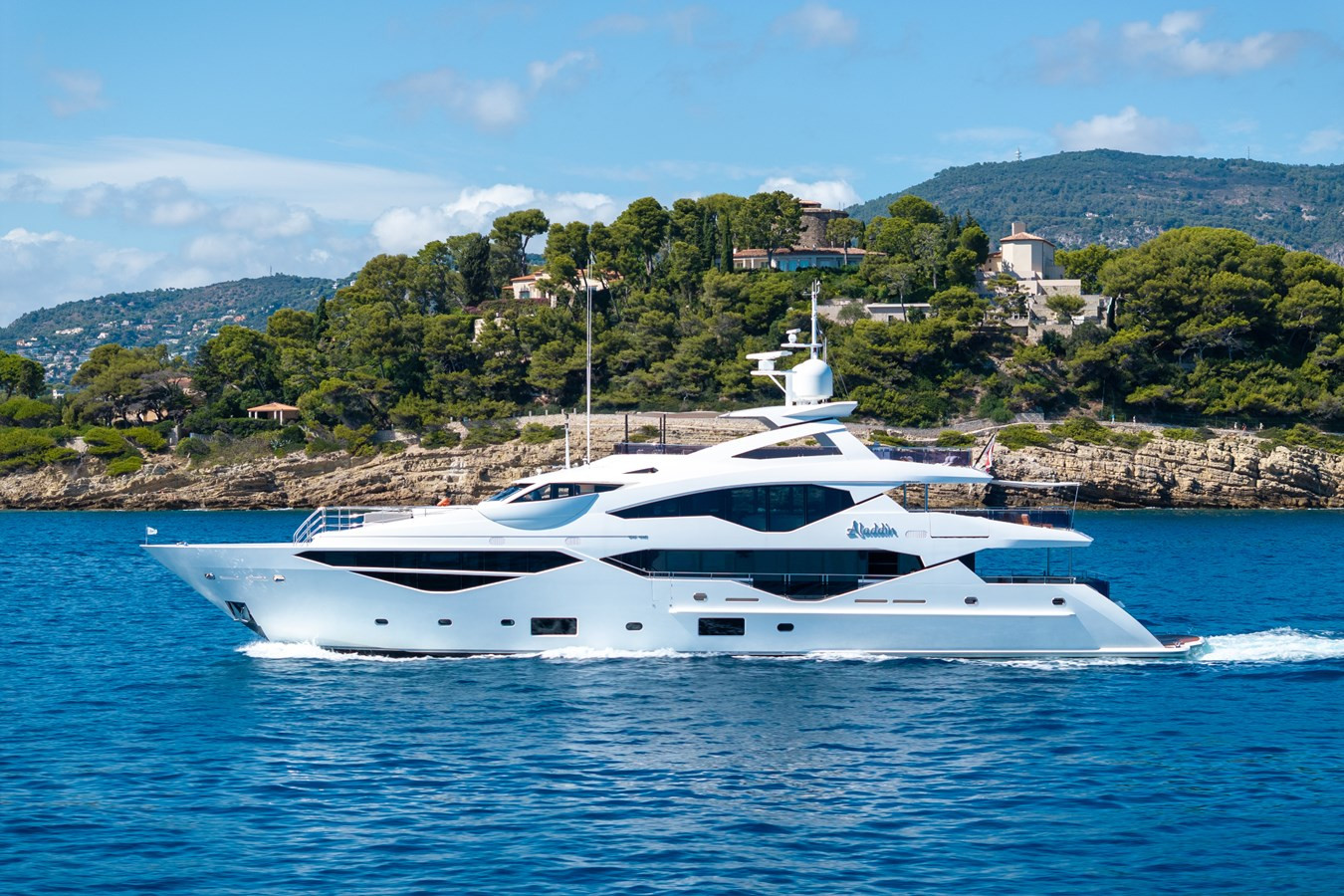

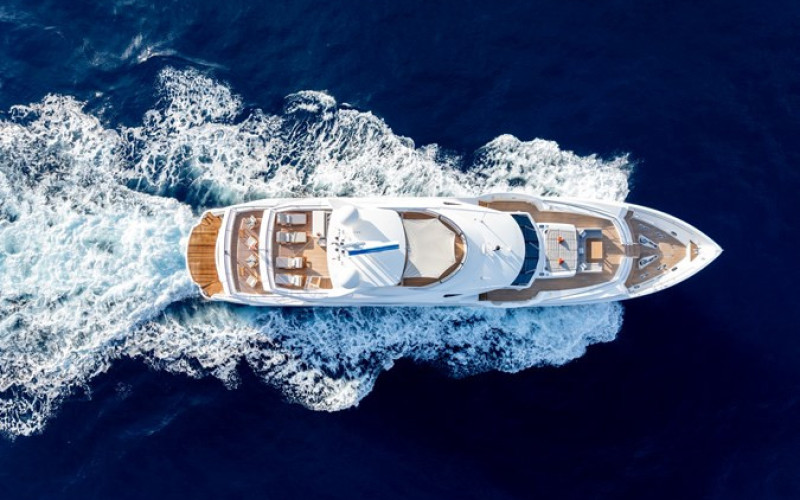

SUNSEEKER Sunseeker 131 ALADDIN

Spécifications

Longueur

40.05 M

Largeur

8.09 M

Année

2017

Constructeur

SUNSEEKER

Type

FlyBridge

Motorisation

MTU MTU 12V 4000 M93 0hp 1497hrs

Vitesse maximale

22 Nds

Vitesse croisière

16 Nds

Cabines

5

Passagers

N/A

Tonnage brut

340

Localisation

Monaco, La Colle (Monaco)

Prix : 13 500 000 € HT

Description

Built in 2017 for a highly experienced Owner, ‘ALADDIN’ is the most lightly used Sunseeker 131 Yacht on today‘s brokerage market. Always private since new, VAT paid, very well maintained and only lightly used around French Riviera.

MAIN SPECIFICATIONS

Builder: Sunseeker

Model: 131 Yacht

Year: 2017

VAT: Paid

Length: 40.05m / 131’ 5”

Beam: 8.09m / 26’ 7”

Draft: 2.70m / 8’ 10”

Hull: GRP

Classification: RINA

Flag: Malta

Port of Registry: Valletta

Guests:12

Guest Accomodation: 1x Master, 2x VIP, 2x Convertible Twins with pullmans

Crew: 8

Crew Accomodation: 3 x Twin Crew Cabins + 2 single cabins

Exterior Designer: Sunseeker

Interior Designer: Sunseeker

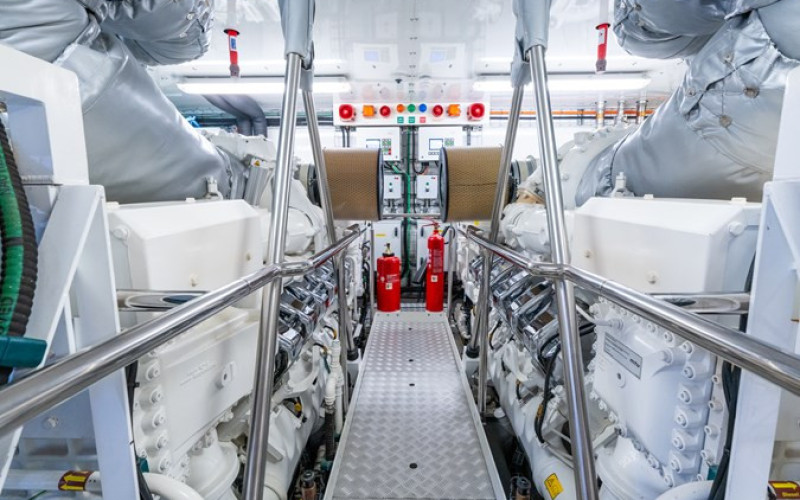

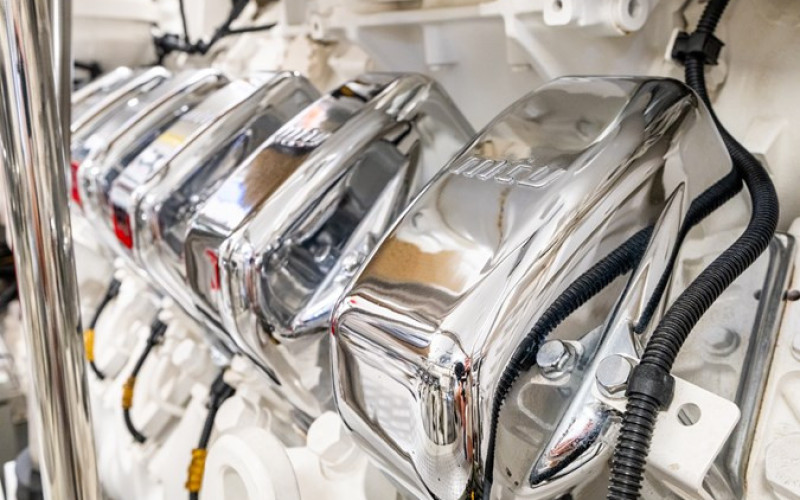

Engines: 2 x MTU 12V 4000 M93

Max Speed: 22 Knots

Cruising Speed: 16 Knots

Economic Speed: 12.5 Knots

Fuel Capacity: 26,700 Litres

Fresh Water Capacity: 4,950 Litred

KEY FEATURES

- Most lightly used Sunseeker 131 yacht on today‘s brokerage market

- Only ever used privately with VAT paid status

- Long list of upgrades over the standard specification

- Accommodation for up to 12 guests in 5 staterooms including Master suite, 2x VIP suites, 2x Convertible Twin cabins

- Designed to accommodate a crew of up to 8

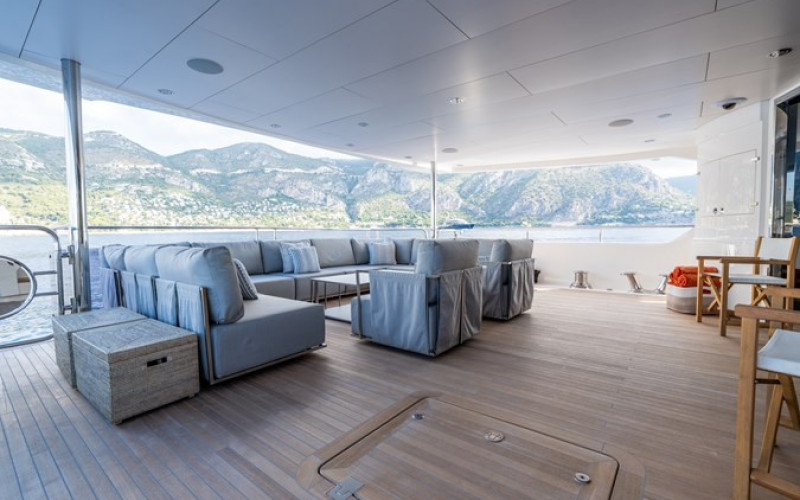

- Expansive outdoor leisure zones

- Distinctive profile with large floor-to-ceiling windows

- Equipped with zero-speed and underway stabilizers

- A blend of powerful top speed of 22 knots

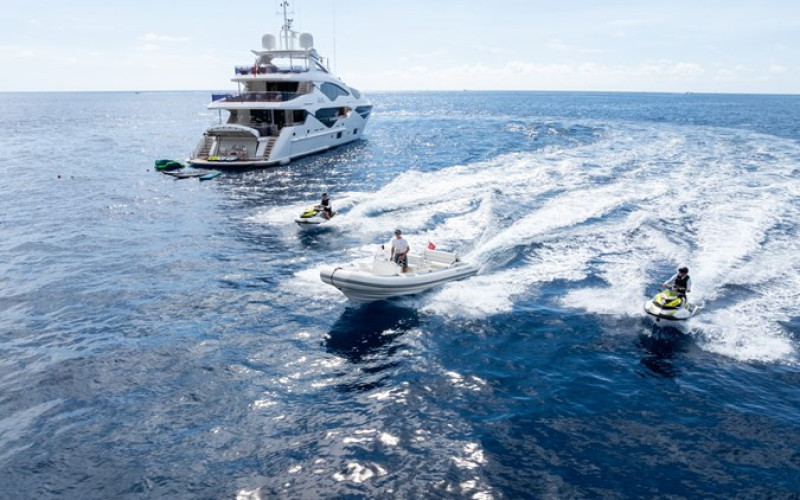

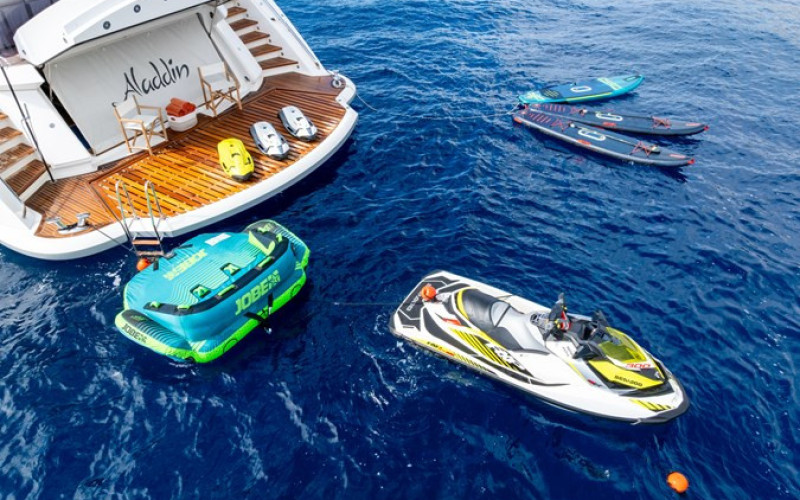

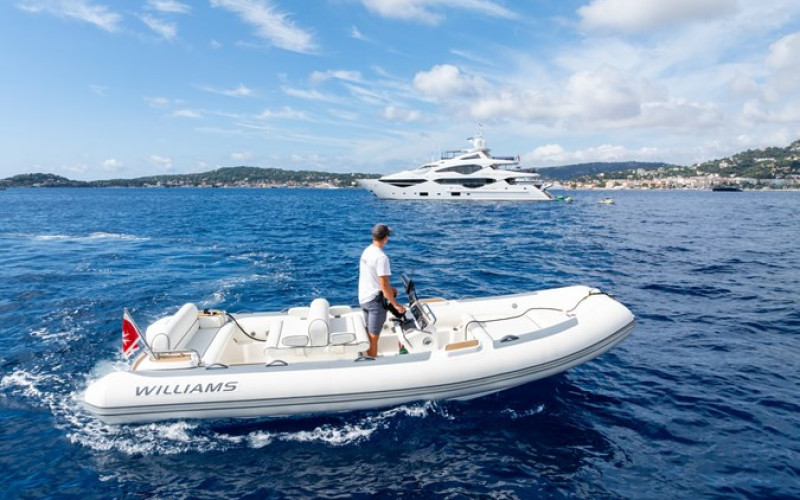

- Full list of of tenders & toys as part of the sales inventory

- Certified RYA training center

CONSUMPTION FIGURES

Economic Speed                 12.5 Knots / 260l/h

Cruising Speed                    16 Knots / 540l/h

Max Speed                           22 Knots / 1180l/h

COLOURS

Hull - White

Hull Band - White

Boot Top - Grey

Superstructure - White

Cabinetry - Gloss American Walnut

Roof Linings - Shimmer Polar White

Interior Upholstery - Ice

Exterior Upholstery - Shingle

Flooring - Satin Walnut 140mm Wide

Plank Timber and Carpet

CLASSIFICATION UPGRADES OVER STANDARD SPECIFICATION

Built to RINA Rules for the Classification of Yachts Designed for Commercial Use 2013 and the MCA Large Yacht Code (LY3) with the following operational Class notation. PLEASURE VESSEL - RINA: C + HULL . MACH Y Unrestricted navigation EFP (Enhanced fire protection)

Certification - International tonnage certificate

Certification - Panama canal tonnage certificate

Certification - Suez canal tonnage certificate

Flag registered in Malta

INTERIOR UPGRADES OVER STANDARD SPECIFICATIONS

Electric - Main Deck Saloon Stern Sliding Patio Doors

Electric - Upper Deck Saloon stern sliding patio doors

Lower Deck Cabins - Electric Blackout Blinds

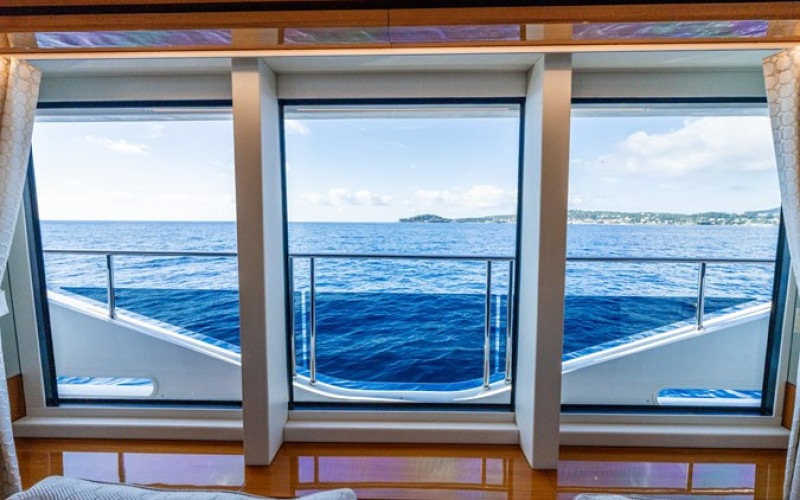

Main Deck Saloon full height glass on the port side

Main Deck Saloon full height glass on the starboard side

Master Stateroom - Dometic HiPro Mini-Bar

Master Stateroom - Dometic Safe MD 281C concealed in cabinetry

Master Stateroom - Powered Blinds for port and starboard windows

Medium Tinted film to side windows and sliding doors

Port Forward Stateroom - Pullman berth

Port Forward Stateroom - Sliding Berths to create Double or Twin Beds

Powered Blinds for the Main Deck Master Stateroom, the Port Aft Guest Stateroom, the Starboard Aft Guest

Stateroom, the Port Forward Guest Stateroom and the Starboard Forward Guest Stateroom

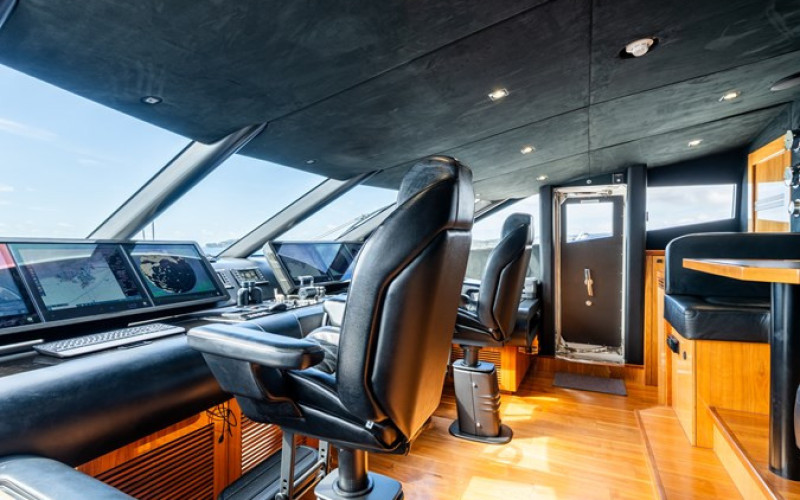

Second helmseat in Wheelhouse

Sprung mattress for all beds

Starboard Forward Stateroom - Pullman berth

Starboard Forward Stateroom - Sliding Berths to create Double or Twin Beds

Turnstyle Leather and polished Chrome door handles

Upper Deck Saloon - Icemaker Victrofrigo Classic

Upper Deck Saloon - Miele undercounter Refrigerator

Upper Deck Saloon - Wine Cooler

Vimar ByMe Lighting controllable also from Wheelhouse Bridge Touch Screen

Vimar ByMe Lighting controlled from internal Touch Screens

Upper Deck Saloon - Wine Cooler

ELECTRICAL UPGRADES OVER STANDARD SPECIFICATION

Kahlenberg Chimetone D1 chrome twin trumpet fitted on forward brow

Navigation Halogen lights - Aquasignal series 55

Preparation for future fitment of V-Sat, including all associated wiring and power supplies – Starlink maritime antenna installed and in use

Professional Appliances - Second set of Miele Professional laundry Appliances. Miele Washing

machine and Miele Tumble dryer

Professional Appliances. Miele Washing machine and Miele Tumble dryer

Shore power configuration is a single 125A plugged flexible 20M cable on an electric reeling system.

Second Shore power configuration is a single 125A plugged loose flexible 20M cable via a fixed inlet.

Connected to a shore power converter Atlas 90 kVA-SPA-II Series 50Hz. Input 180-530V three phase

phase up to 90kVA. Output 230/400V 50Hz 3 phase 90kVA

Shore power converter Atlas 90 kVA-SPA-II Series 50Hz. Input 180-530V three phase up to

90kVA. Output 230/400V 50Hz 3 phase 90kVA

Sockets - Interior AC 220V 50Hz sockets - Euro 2 pin

Tijssen - Display of the main generator parameters.

Tijssen - Remote Access via internet VPN for Tijseen Elektro factory (captain approve access only)

 Fire Alarm Monitoring. Pop up alarm in the event of active fire alarm

Tijssen - AC Electrical system power monitoring and display.

Tijssen - CCTV camera system with eight dedicated cameras.

Camera 1 Main deck Aft viewing aft stern entry point

Camera 2 Engine room (PTZ-360°)

Camera 3 Engine room (PTZ-360°)

Camera 4 Port Main deck side deck (viewing aft)

Camera 5 Starboard Main deck side deck (viewing aft)

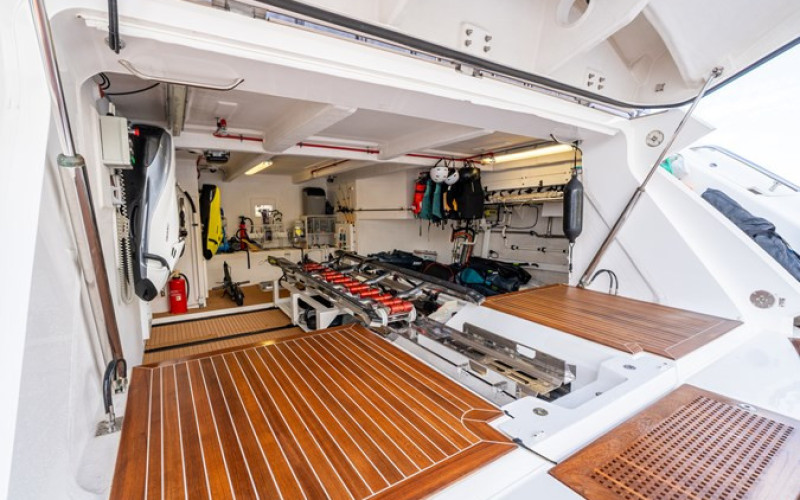

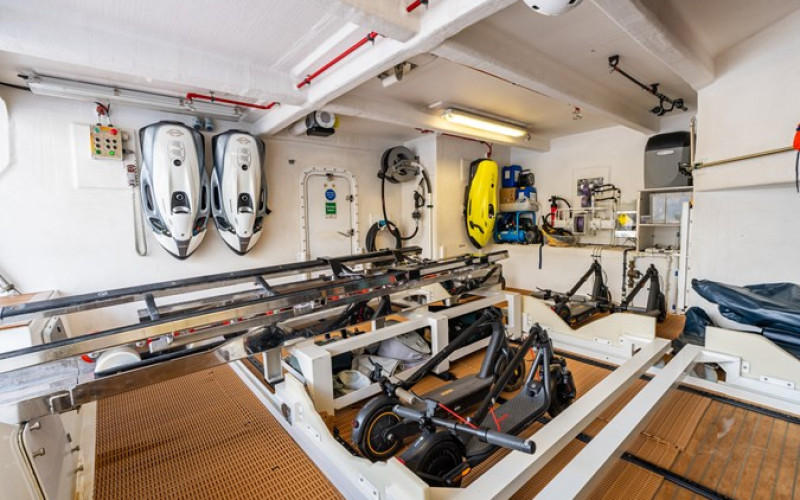

Camera 6 Tender Garage.

Camera 7 Upper Deck Aft Cockpit.

Camera 8 Sky Deck deck (viewing aft)

+CCTV recorder installed onboard

Tijssen - DC System Power monitoring and display.

Tijssen - Elecktro Marine Personal Assistance (MPA) integrated power management, boat monitoring

and control system. Tijssen Master MPA 17” touchscreen display.

Tijssen - Elecktro Marine Personal Assistance (MPA) integrated power management, boat monitoring

and control system. Tijssen Master MPA 19” touchscreen display in the Wheelhouse.

Tijssen - Master MPA 15” touchscreen display in the Crew Mess.

Tijssen - Master MPA 17” touchscreen display in the Tech Room.

Tijssen - Monitoring and Control of all major fluid pumps (Fuel Transfer, Black and Grey)

Monitoring of status of all the main circuit breakers.

Tijssen - Monitoring and Control of engine room ventilation.

Tijssen - Monitoring and control of navigation lights.

Tijssen - Monitoring and display of DC switch gear status.

Tijssen - Monitoring exhaust temperature

Tijssen - Monitoring of Diesel fuel, fresh water, grey water and black water and Oil tank levels.

Tijssen - Monitoring of Portlight and Hatch Status.

Tijssen - Monitoring via a single float switch of bilge water level in 13 bilge compartments.

Tijssen - MPA Generator Control and Monitoring System Upgrade. Additional feature allowing

complete control and monitoring of generator parameters and alarms via the Tijssen Touch

Screen.

Tijssen - Slave MPA 15” touchscreen display in the Engine Room.

Tijssen - Status monitoring and control of AC switch gear.

Tijssen - Swipe card security alarm Integrated to MPA system

Two LED up lighters for navigation mast

Two Shorelines are provided for connection to the PABX and an external Ethernet Network connection

ENGINEERING UPGRADES OVER STANDARD SPECIFICATION

ABT.TRAC provides the hydraulic system for the Thruster system, Stabilisers if specified, foredeck windlasses and aft deck capstans Each engine turns a 140cc load sense hydraulic pump via a SAE-C PTO on the gearbox. A 75cc load sense hydraulic pump via a SAE-C24 volt clutched PTO on the main generator and a 75cc load sense hydraulic pump via a SAE-C24 volt clutched PTO on the second generator.

Air Conditioining - Marine Air MCG V120 Modular Chiller 4 x 120000BTU

Air Conditioning for the engine room. Two Marine Air VCD27K (54,000 Btu) Self-contained units

Alfa Laval MIB303 Fuel cleaning centrifugal separator 240V 1 Phase 50Hz 760 l/h

Auto Troll for Transmissions for slow speed manoeuvring

Bilge pump system with primary engine room pump being the Gianneshi self priming centrifugal 400V 3 Phase 50Hz 7.5kW and a secondary (as shared with the Hydrant suction system) Gianneshi self priming centrifugal pump powered by an independent diesel engine located in the pump room. Both are coupled to bilge manifould valve blocks which are connected to the strum boxes throughout the boat.

MTU fitted Stbd engine direct bilge pump with strum box.

Black water holding tank is an integral GRP tank of 1340 litre capacity. Discharge via a Gianneshi 400V 3 Phase 50Hz self priming centrifugal macerating pump to either a shore facility when available or directly overboard (refer to MARPOL regulations) or the Sewage treatment.

Diesel fuel day tank is an integral GRP tank of 3,900 litre capacity with an AC transfer pump to replenish from the main tank.

Diesel fuel long range overload integral GRP tank of 5,700 litre capacity

Diesel fuel main tank is an integral GRP tank of 19,000 litre capacity

Fire Hydrant primary engine room pump being the Gianneshi self priming centrifugal 400V 3 Phase 50Hz 7.5kW and a secondary Yanmar self priming centrifugal pump powered by an independent diesel engine located in the pump room. Fire Hydrant hose station located in the pump room.

Fireboy-Xintex Fire alarm detection system. Model Syncro ASM control panel with dedicated Apollo smoke/heat detectors in all accomodation areas and heat detector in the galley. Connected to the MPA system to repeat alarm.

Fresh water tank is an integral GRP tank, WRAS approval for portable water of 5200 litre capacity.

Pressure system via Twin Gianneshi Duplex 400V 3 Phase 50Hz self priming pumps 100 l/m each and mounted with inlet/discharge manifold.

General Ecology Seagull IV X-2BK in-line freshwater purifier serving the galley, upper deck servery, crew mess and 2 independent icemakers

Generators - Two Kohler 75kw 400/230V 3 Phase 50Hz - 80EFOZDJ with sound shields

Grey water from showers, wash basins washing machines and galley services will drain to Tecma transfer units 240V 1 Phase 50Hz to large diameter gravity fed pipes into the Grey water integral GRP holding tank of 1250 litre capacity. Discharge is via a Gianneshi 400V 3 Phase 50Hz self priming centrifugal macerating pump to directly over board or the black water tank to that the waste can be removed via a shore side facility when available or to the sewage treatment system.

Hot water calorifiers. Two x Surejust horizontal 200 litre stainless steel cased tanks, each with 3 x 2kW 230V 3 phase immersion heaters. 60 litre expansion tank.

Hot/Cold water circuit ring main throughout the lower and main decks with permanently running circulation pumps 230V 1 Phase 50Hz - 120W

Hydraulic Bow thruster system 100HP ABT.TRAC 20‘‘ twin blades opposite opposed

Hydraulic Stern thruster system 65HP ABT.TRAC 16‘‘ twin blades opposite opposed

Hydrosil dosing unit. Will disinfect the freshwater supply from the connection point in the starboard aft service locker or from the watermaker. Located on the garage the Octo Marine Compact Fresh Water Softener

Portable air compressor OP20P stored in the engine room with AC 220v power supply

Reverso portable electric transfer pump Oil change system for engines gearboxes and generators with quick coupling connection pipes

Sea-Fire FM-200 H-Series fixed machinery space fire extinguishing system.

Sewage Treatment plant. ECOmar 32 SX-R (3200 l/day) 230V 1 Phase 50Hz Trailing Pumps. Used to supply oil pressure for gearbox lubrication during windmilling situations, this may include running on one engine or when under tow

Water Maker - Idromar Water Maker 375 litres per hour

DECK UPGRADES OVER STANDARD SPECIFICATION

4 x Zodiac 10 Person SOLAS A Life rafts

6x 65mm LED lights on moulded return of garage door

All teak decks have GREY caulking in lieu of the standard black

Besenzoni Hydraulic three stage Telescopic stainless steel Passerella 5.8m

Carbon fibre and polished stainless steel ensign staff suitable for 2.5 yard ensign

Exterior AC 220v sockets in the following areas. 1. Sky Deck wet bar 2. Forepeak Locker 3. Upper Deck Aft Cockpit Servery. 4. Wheelhouse Deck Seating.

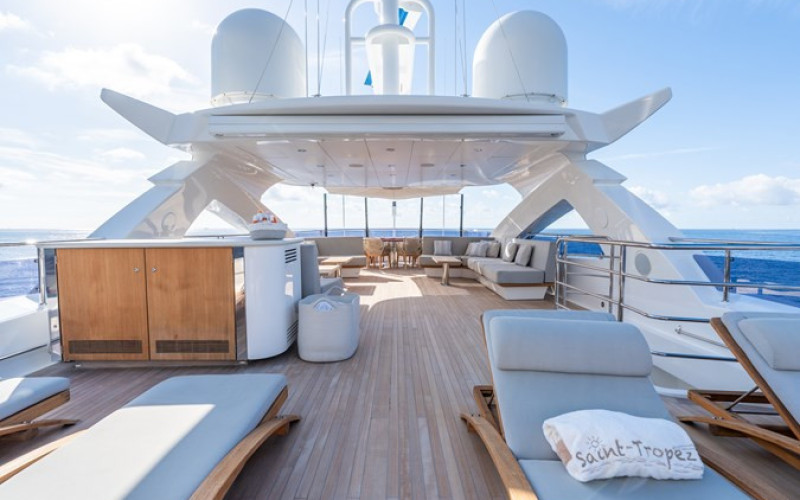

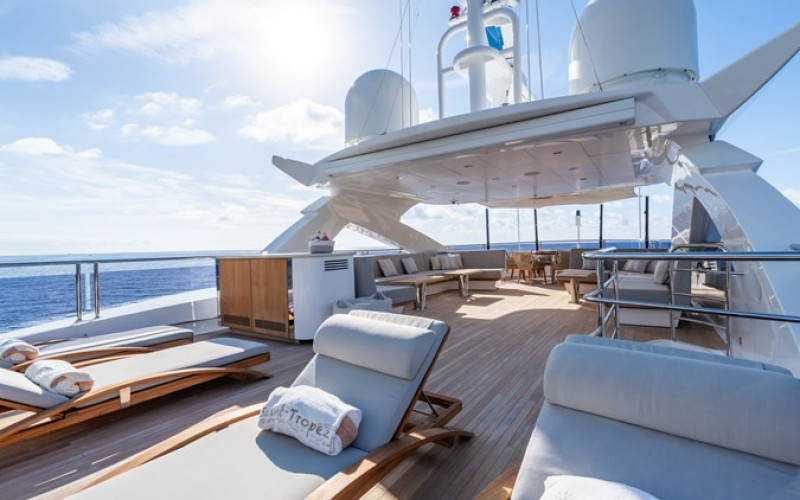

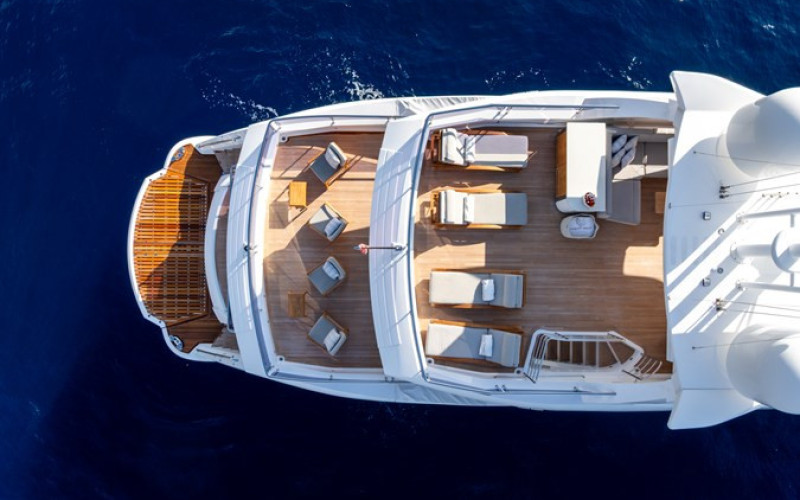

Four (4x) Summit SD345 sun loungers on Sky Deck. Upholstery colour - Sunbrella Shingles

Hot and Cold water wash down outlets for exterior

Hydraulically rise, fall and tilt platform with maximum lift capacity of 2000 kg

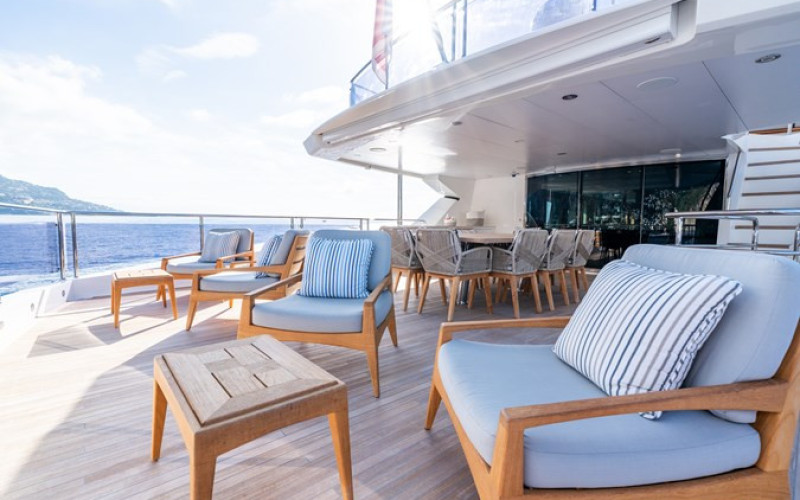

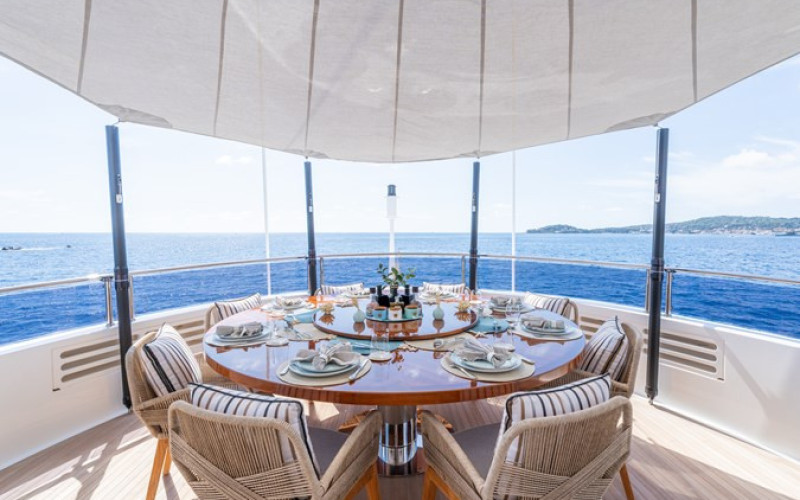

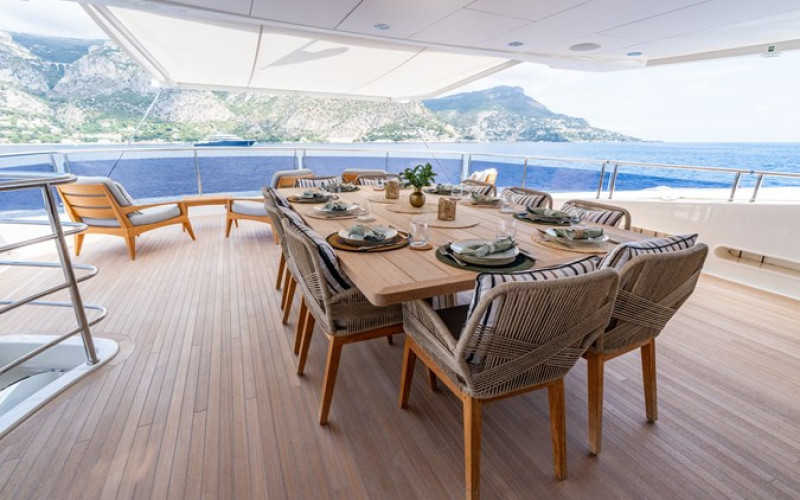

Main Deck Aft Cockpit furniture - Fischer Mobel loose fit in lieu of standard taken from the SUITE collection.

Marquip 8 step side mount stairway with hull fittings port and starboard with dedicated stowage

Morton Marine Monte Carlo 3m Parasol with offset post and two sockets with dedicated stowage

Natural teak plinths either side of tender recovery recess in tender garage aperture with teak infill. Teak

features GREY caulking in lieu of black.

Port and Starboard stainless steel stern hausers through aft bulwarks for stern too mooring or towing

Operations

Radar in white and blue epoxy coated finish and navigation mast in white epoxy coated finish

Removable overhead shower stand on the platform

Removable polished stainless steel bathing ladder with teak treads

Retractable electric sun awning to cover the aft sky deck in Sunbrella Plus – Silver

Sail Canopies for forward section of Sky Deck with stainless steel poles and integrated rope tensioning

System

Seawater pressure washing of anchor chain with outlet in each hawse pipe

Second pair of Mooring Bollards on Forepeak

Sky Deck - Refrigerator. Waeco Coolmatic

Sky Deck- Icemaker Victrofrigo Classic
